Hydraulic Flake Mill

	Vivas Co manager@vivas.com.ua	Odesa Ukraine +380 487001892

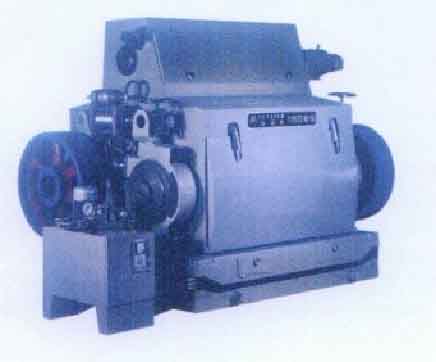

Flake Mill Model YP80x10 Profile: This machine is suitable for soya beans, peanuts, cotton seeds, rapeseeds and sunflower seeds flaking, the flake thickness is 0.2~0.35mm. The construction is the hydraulic double roll one and has properties of high production, less power consumption, flakes evenly and low noise. Especially the cast iron base and centrifugal casting roll eliminate the vibration after dynamic balance and the whole unit's operation evenness could be guaranteed. Main Technical Parameters

Model Capacity tonn/24 hours Flakes sickness,mm Power,kW Dimensions LxWxH mm

YP2x80x100 130 0.2~0.35 30x2 1970x1640x2380

YP2x80x125 180 0.2~0.35 37x2 2400x1760x2630

YP2x80x125 300 0.2~0.35 55x2 2910x1760x2630

YP2x80x125 320 0.2~0.35 110 2810x1760x2630

YP2x80x125 400 0.2~0.35 75x2 3540x1760x2630

VIVAS Co.
#2, Nejinskaya str.69
Odessa _*65045 _* Ukraine
tel+380 48 7001892
+380 94 952 4892
E-mail: manager@vivas.com.ua
Web: https://vivas.com.ua back to the main page

Model	Capacity tonn/24 hours	Flakes sickness,mm	Power,kW	Dimensions LxWxH mm
YP2x80x100	130	0.2~0.35	30x2	1970x1640x2380
YP2x80x125	180	0.2~0.35	37x2	2400x1760x2630
YP2x80x125	300	0.2~0.35	55x2	2910x1760x2630
YP2x80x125	320	0.2~0.35	110	2810x1760x2630
YP2x80x125	400	0.2~0.35	75x2	3540x1760x2630

Flake Mill Model YP80x10
