| COMPLETE CORN GRINDING CORN EMBRYO OIL PRESSING PLANT WITH CAPACITY OF 100 MT/DAY | |||

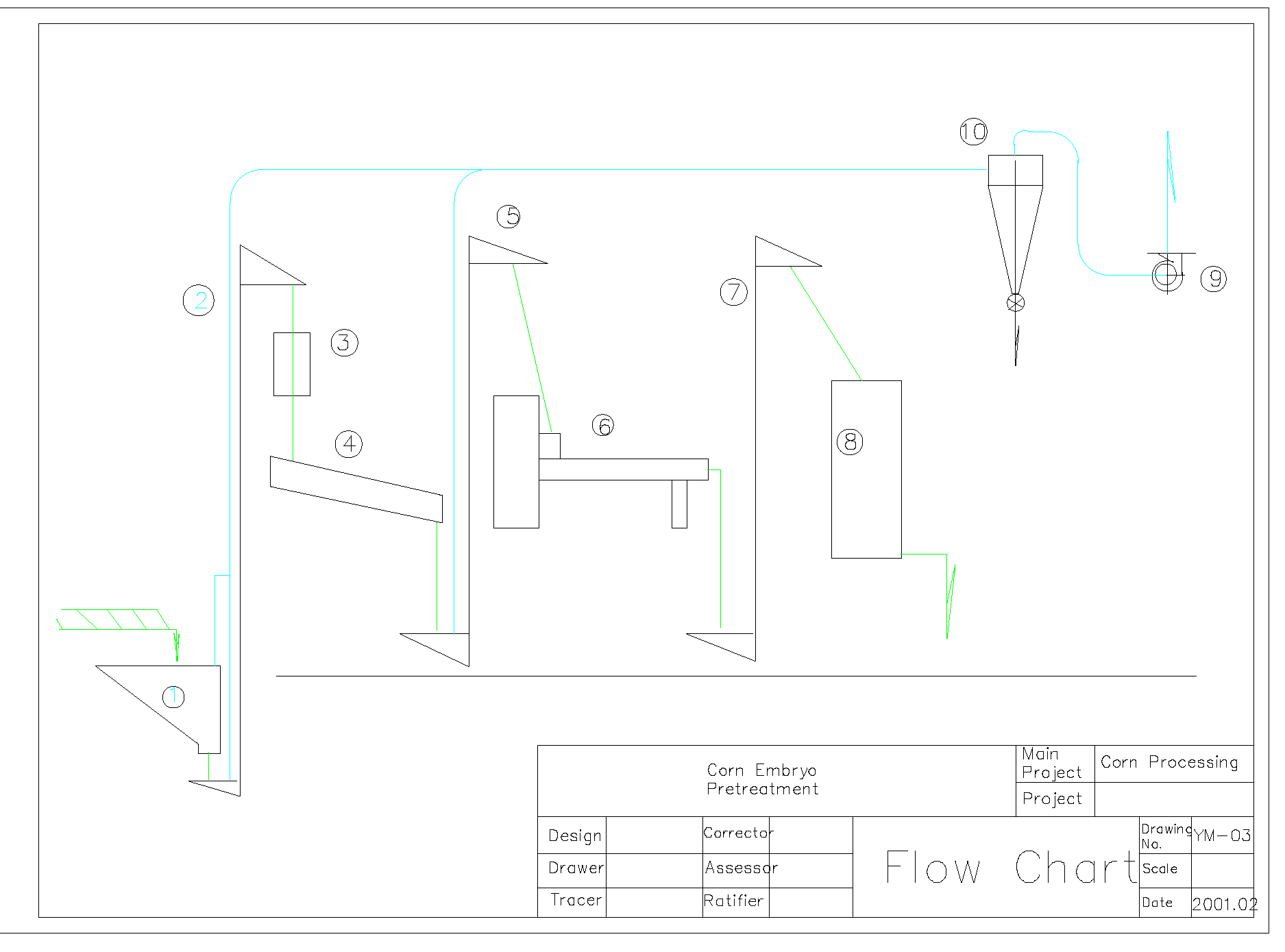

| CORN EMBRYO PRETREATMENT AND PRESSING STATION 10 MT/DAY.SPECIFICATION click here to see flow chart |
Description |
Power(kW) | Q-ty (pcs) | |
| 1 | Equipment | 18,5 | 10 |
| 2 | Electrical equipment and control system | 1 set | |
| 3 | Material of installation | 1 lot | |
| 4 | Instruments and Valves | 1 lot | |
TOTAL: |
18,5 |
ITEM |
DESCRIPTION |
POWER | QTY | DIMENSIONS | WEIGHT | MATERIAL |
| kw | pcs | LxBxH (mm) | kg | |||
| 1 | Feeding Hopper | 1 | 1400x800x1200 |
200 |
Q235A | |
| 2 | Bucket elevator |
0,75 | 1 | 800x300x6000 |
300 |
Q235A |
| 3 | Magnetic separator |
1 | 400x400x600 |
50 |
304 | |
| 4 | Cleaning separator |
0,75 | 1 | 1600x1000x1200 |
250 |
Q235A |
| 5 | Bucket elevator |
0,75 | 1 | 800x300x4500 |
250 |
Q235A |
| 6 | Oil seed extruding and expanding machine |
10 | 1 | 2000x800x1500 |
1500 |
Q235A |
| 7 | Bucket elevator |
0,75 | 1 | 800x300x4500 |
300 |
Q235A |
| 8 | Feeding storage |
1 | 1000x1000x2500 |
300 |
Q235A | |
| 9 | Air blast |
5,5 | 1 | 1100x800x2000 |
200 |
Q235A |
| 10 | Dust remover |
1 | 1100x1100x2500 |
300 |
Q235A | |
TOTAL |
18,5 | 10 | 3650 |
