COMPLETE CORN GRINDING & CORN EMBRYO OIL PRESSING PLANT WITH CAPACITY OF 100 MT/DAY |

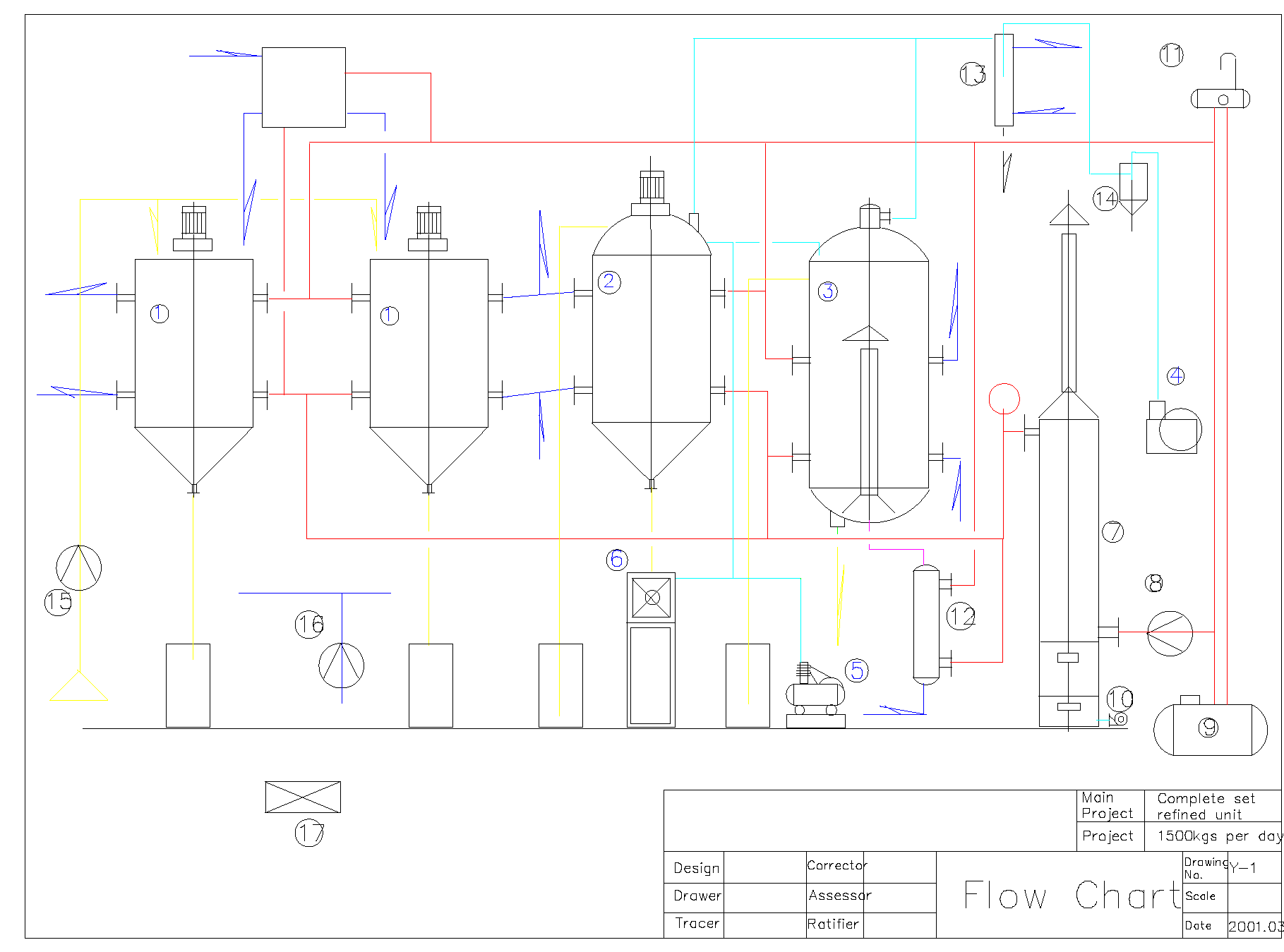

3 MT/DAY COMPLETE SET CORN OIL REFINED UNIT click here to see flow chart |
ITEM |
DDESCRIPTION |
POWER | QTY | MATERIAL |
| kW | pcs | |||
| 1 | Neutralization Pot | 0,75 | 2 | 304 |
| 2 | Bleaching Pot | 0,75 | 1 | 304 |
| 3 | Deodorization Pot | 1 | 304 | |
| 4 | Vacuum Pump | 5,50 | 1 | Q235-A |
| 5 | Air Compressor | 1,50 | 1 | Q235-A |
| 6 | Filter-press | 1 | Q235-A | |
| 7 | Conduction Oil Boiler | 1 | Q235-A | |
| 8 | Conduction Oil Pump | 3,00 | 1 | Q235-A |
| 9 | Conduction Oil Tank | 1 | Q235-A | |
| 10 | Air Blower | 0,10 | 1 | Q235-A |
| 11 | Conduction Oil High-level Tank | 1 | Q235-A | |
| 12 | Steam Generator | 1 | Q235-A | |
| 13 | Condenser | 1 | 304 | |
| 14 | Catcher | 1 | 304 | |
| 15 | Oil Pump | 0,75 | 1 | 304 |
| 16 | Water Pump | 0,75 | 1 | 304 |
| 17 | Distribution Box | 2 | ||
| 18 | Unit Frame | 1 | ||
TOTAL |
13,85 | 20 | Total Dimensions LxBxH,mm: 8500x2000x4500 Total weight:8000kg |
